Textured Raycaster


The core of the textured version of the raycaster is almost the same, only at the end some extra calculations need to be done for the textures, and a loop in the y-direction is required to go through every pixel to determinate which texel (texture pixel) of the texture should be used for it.

The vertical stripes can't be drawn with the vertical line command anymore, instead every pixel has to be drawn seperately. The best way is to use a 2D array as screen buffer this time, and copy it to the screen at once, that goes a lot faster than using pset.

Of course we now also need an extra array for the textures, and since the "drawbuffer" function works with single integer values for colors (instead of 3 separate bytes for R, G and B), the textures are stored in this format as well. Normally, you'd load the textures from a texture file, but for this simple example some dumb textures are generated instead.

The code is mostly the same as the previous example, the bold parts are new. Only new parts are explained.

The screenWidth and screenHeight are now defined in the beginning because we need the same value for the screen function, and to create the screen buffer. Also new are the texture width and height that are defined here. These are obviously the width and height in texels of the textures.

The world map is changed too, this is a more complex map with corridors and rooms to show the different textures. Again, the 0's are empty walkthrougable spaces, and each positive number corresponds to a different texture.

#define screenWidth 640
#define screenHeight 480
#define texWidth 64
#define texHeight 64
#define mapWidth 24
#define mapHeight 24

int worldMap[mapWidth][mapHeight]=

The screen buffer and texture arrays are declared here. The texture array is an array of std::vectors, each with a certain width * height pixels.

int main(int /*argc*/, char */*argv*/[])
  double posX = 22.0, posY = 11.5;  //x and y start position
  double dirX = -1.0, dirY = 0.0; //initial direction vector
  double planeX = 0.0, planeY = 0.66; //the 2d raycaster version of camera plane
  double time = 0; //time of current frame
  double oldTime = 0; //time of previous frame
  Uint32 buffer[screenWidth][screenHeight];
  std::vector texture[8];
  for(int i = 0; i < 8; i++) texture[i].resize(texWidth * texHeight);

The main function now begins with generating the textures. We have a double loop that goes through every pixel of the textures, and then the corresponding pixel of each texture gets a certain value calculated out of x and y. Some textures get a XOR pattern, some a simple gradient, others a sort of brick pattern, basicly it are all quite simple patterns, it's not going to look all that beautiful, for better textures see the next chapter.

  screen(screenWidth,screenHeight, 0, "Raycaster");
 //generate some textures
  for(int x = 0; x < texWidth; x++)
  for(int y = 0; y < texHeight; y++)
    int xorcolor = (x * 256 / texWidth) ^ (y * 256 / texHeight);
    //int xcolor = x * 256 / texWidth;
    int ycolor = y * 256 / texHeight;
    int xycolor = y * 128 / texHeight + x * 128 / texWidth;
    texture[0][texWidth * y + x] = 65536 * 254 * (x != y && x != texWidth - y); //flat red texture
	with black cross
    texture[1][texWidth * y + x] = xycolor + 256 * xycolor + 65536 * xycolor; //sloped greyscale
    texture[2][texWidth * y + x] = 256 * xycolor + 65536 * xycolor; //sloped yellow gradient
    texture[3][texWidth * y + x] = xorcolor + 256 * xorcolor + 65536 * xorcolor; //xor greyscale
    texture[4][texWidth * y + x] = 256 * xorcolor; //xor green
    texture[5][texWidth * y + x] = 65536 * 192 * (x % 16 && y % 16); //red bricks
    texture[6][texWidth * y + x] = 65536 * ycolor; //red gradient
    texture[7][texWidth * y + x] = 128 + 256 * 128 + 65536 * 128; //flat grey texture

This is again the start of the gameloop and initial declarations and calculations before the DDA algorithm. Nothing has changed here.

  //start the main loop
    for(int x = 0; x < w; x++)
      //calculate ray position and direction
      double cameraX = 2*x/double(w)-1; //x-coordinate in camera space
      double rayPosX = posX;
      double rayPosY = posY;
      double rayDirX = dirX + planeX*cameraX;
      double rayDirY = dirY + planeY*cameraX;
      //which box of the map we're in
      int mapX = int(rayPosX);
      int mapY = int(rayPosY);
      //length of ray from current position to next x or y-side
      double sideDistX;
      double sideDistY;
      //length of ray from one x or y-side to next x or y-side
      double deltaDistX = sqrt(1 + (rayDirY * rayDirY) / (rayDirX * rayDirX));
      double deltaDistY = sqrt(1 + (rayDirX * rayDirX) / (rayDirY * rayDirY));
      double perpWallDist;
      //what direction to step in x or y-direction (either +1 or -1)
      int stepX;
      int stepY;
      int hit = 0; //was there a wall hit?
      int side; //was a NS or a EW wall hit?

      //calculate step and initial sideDist
      if (rayDirX < 0)
        stepX = -1;
        sideDistX = (rayPosX - mapX) * deltaDistX;
        stepX = 1;
        sideDistX = (mapX + 1.0 - rayPosX) * deltaDistX;
      if (rayDirY < 0)
        stepY = -1;
        sideDistY = (rayPosY - mapY) * deltaDistY;
        stepY = 1;
        sideDistY = (mapY + 1.0 - rayPosY) * deltaDistY;

This is again the DDA loop, and the calculations of the distance and height, nothing has changed here either.

      //perform DDA
      while (hit == 0)
        //jump to next map square, OR in x-direction, OR in y-direction
        if (sideDistX < sideDistY)
          sideDistX += deltaDistX;
          mapX += stepX;
          side = 0;
          sideDistY += deltaDistY;
          mapY += stepY;
          side = 1;
        //Check if ray has hit a wall
        if (worldMap[mapX][mapY] > 0) hit = 1;
      //Calculate distance of perpendicular ray (oblique distance will give fisheye effect!)
      if (side == 0) perpWallDist = fabs((mapX - rayPosX + (1 - stepX) / 2) / rayDirX);
      else       perpWallDist = fabs((mapY - rayPosY + (1 - stepY) / 2) / rayDirY);
      //Calculate height of line to draw on screen
      int lineHeight = abs(int(h / perpWallDist));
      //calculate lowest and highest pixel to fill in current stripe
      int drawStart = -lineHeight / 2 + h / 2;
      if(drawStart < 0) drawStart = 0;
      int drawEnd = lineHeight / 2 + h / 2;
      if(drawEnd >= h) drawEnd = h - 1;

The following calculations are new however, and replace the color chooser of the untextured raycaster.
The variable texNum is the value of the current map square minus 1, the reason is that there exists a texture 0, but map tile 0 has no texture since it represents an empty space. To be able to use texture 0 anyway, substract 1 so that map tiles with value 1 will give texture 0, etc...

The value wallX represents the exact value where the wall was hit, not just the integer coordinates of the wall. This is required to know which x-coordinate of the texture we have to use. This is calculated by first calculating the exact x or y coordinate in the world, and then substracting the integer value of the wall off it. Note that even if it's called wallX, it's actually an y-coordinate of the wall if side==1, but it's always the x-coordinate of the texture.

Finally, texX is the x-coordinate of the texture, and this is calculated out of wallX.

      //texturing calculations
      int texNum = worldMap[mapX][mapY] - 1; //1 subtracted from it so that texture 0 can be used!
      //calculate value of wallX
      double wallX; //where exactly the wall was hit
      if (side == 1) wallX = rayPosX + ((mapY - rayPosY + (1 - stepY) / 2) / rayDirY) * rayDirX;
      else       wallX = rayPosY + ((mapX - rayPosX + (1 - stepX) / 2) / rayDirX) * rayDirY;
      wallX -= floor((wallX));
      //x coordinate on the texture
      int texX = int(wallX * double(texWidth));
      if(side == 0 && rayDirX > 0) texX = texWidth - texX - 1;
      if(side == 1 && rayDirY < 0) texX = texWidth - texX - 1;

Now that we know the x-coordinate of the texture, we know that this coordinate will remain the same, because we stay in the same vertical stripe of the screen. Now we need a loop in the y-direction to give each pixel of the vertical stripe the correct y-coordinate of the texture, called texY.

The value of texY is calculated with integer math for more speed, but all the values that will be divided through a value are multiplied by 256 first, and afterwards it's divided through 256 again, for more precision. Otherwise some pretty ugly effects show up.

The color of the pixel to be drawn is then simply gotten from texture[texNum][texX][texY], which is the correct texel of the correct texture.

Like the untextured raycaster, here too we'll make the color value darker if an y-side of the wall was hit, because that looks a little bit better (like there is a sort of lighting). However, because the color value doesn't exist out of a separate R, G and B value, but these 3 bytes sticked together in a single integer, a not so intuitive calculation is used.

The color is made darker by dividing R, G and B through 2. Dividing a decimal number through 10, can be done by removing the last digit (e.g. 300/10 is 30: the last zero is removed). Similarly, dividing a binary number through 2, which is what is done here, is the same as removing the last bit. This can be done by bitshifting it to the right with >>1. But, here we're bitshifting a 24-bit integer (actually 32-bit, but the first 8 bits aren't used). Because of this, the last bit of one byte will become the first bit of the next byte, and that screws up the color values! So after the bitshift, the first bit of every byte has to be set to zero, and that can be done by binary "AND-ing" the value with the binary value 011111110111111101111111, which is 8355711 in decimal. So the result of this is indeed a darker color.

Finally, the current buffer pixel is set to this color, and we move on to the next y.

      for(int y = drawStart; y<drawEnd; y++)
        int d = y * 256 - h * 128 + lineHeight * 128;  //256 and 128 factors to avoid floats
        int texY = ((d * texHeight) / lineHeight) / 256;
        Uint32 color = texture[texNum][texHeight * texY + texX];
        //make color darker for y-sides: R, G and B byte each divided through two with a "shift"
		and an "and"
        if(side == 1) color = (color >> 1) & 8355711;
        buffer[x][y] = color;

Now the buffer still has to be drawn, and after that it has to be cleared (where in the untextured version we simply had to use "cls"). The rest of this code is again the same.

    for(int x = 0; x < w; x++) for(int y = 0; y < h; y++) buffer[x][y] = 0; //clear the buffer
	instead of cls()
    //timing for input and FPS counter
    oldTime = time;
    time = getTicks();
    double frameTime = (time - oldTime) / 1000.0; //frametime is the time this frame has taken,
	in seconds
    print(1.0 / frameTime); //FPS counter
    //speed modifiers
    double moveSpeed = frameTime * 5.0; //the constant value is in squares/second
    double rotSpeed = frameTime * 3.0; //the constant value is in radians/second

And here's again the keys, nothing has changed here either. If you like you can try to add strafe keys (to strafe to the left and right). These have to be made the same way as the up and down keys, but use planeX and planeY instead of dirX and dirY.

    //move forward if no wall in front of you
    if (keyDown(SDLK_UP))
      if(worldMap[int(posX + dirX * moveSpeed)][int(posY)] == false) posX += dirX * moveSpeed;
      if(worldMap[int(posX)][int(posY + dirY * moveSpeed)] == false) posY += dirY * moveSpeed;
    //move backwards if no wall behind you
    if (keyDown(SDLK_DOWN))
      if(worldMap[int(posX - dirX * moveSpeed)][int(posY)] == false) posX -= dirX * moveSpeed;
      if(worldMap[int(posX)][int(posY - dirY * moveSpeed)] == false) posY -= dirY * moveSpeed;
    //rotate to the right
    if (keyDown(SDLK_RIGHT))
      //both camera direction and camera plane must be rotated
      double oldDirX = dirX;
      dirX = dirX * cos(-rotSpeed) - dirY * sin(-rotSpeed);
      dirY = oldDirX * sin(-rotSpeed) + dirY * cos(-rotSpeed);
      double oldPlaneX = planeX;
      planeX = planeX * cos(-rotSpeed) - planeY * sin(-rotSpeed);
      planeY = oldPlaneX * sin(-rotSpeed) + planeY * cos(-rotSpeed);
    //rotate to the left
    if (keyDown(SDLK_LEFT))
      //both camera direction and camera plane must be rotated
      double oldDirX = dirX;
      dirX = dirX * cos(rotSpeed) - dirY * sin(rotSpeed);
      dirY = oldDirX * sin(rotSpeed) + dirY * cos(rotSpeed);
      double oldPlaneX = planeX;
      planeX = planeX * cos(rotSpeed) - planeY * sin(rotSpeed);
      planeY = oldPlaneX * sin(rotSpeed) + planeY * cos(rotSpeed);

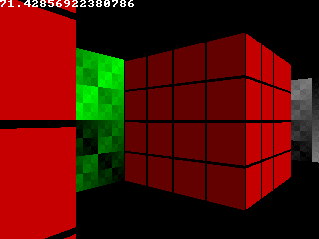

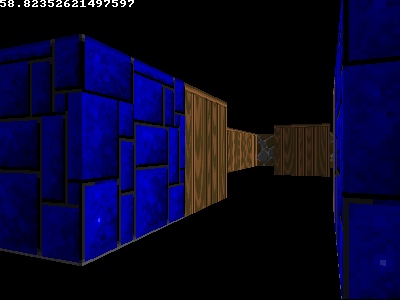

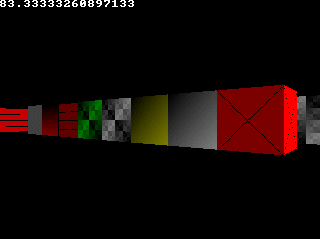

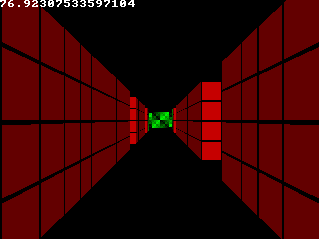

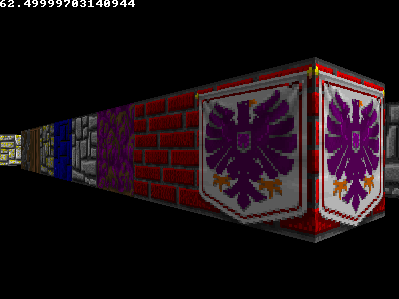

Here's a few screenshots of the result:

Note: Usually images are stored by horizontal scanlines, but for a raycaster the textures are drawn as vertical stripes. Therefore, to optimally use the cache of the CPU and avoid page misses, it might be more efficient to store the textures in memory vertical stripe by vertical stripe, instead of per horizontal scanline. To do this, after generating the textures, swap their X and Y by (this code only works if texWidth and texHeight are the same):

  //swap texture X/Y since they'll be used as vertical stripes
  for(size_t i = 0; i < 8; i++)
  for(size_t x = 0; x < texSize; x++)
  for(size_t y = 0; y < x; y++)
  std::swap(texture[i][texSize * y + x], texture[i][texSize * x + y]);

Or just swap X and Y where the textures are generated, but in many cases after loading an image or getting a texture from other formats you'll have it in scanlines anyway and have to swap it this way.

When getting the pixel from the texture then, use the following code instead:

Uint32 color = texture[texNum][texSize * texX + texY];

Wolfenstein 3D Textures

Instead of just generating some textures, let's load a few from bmp's instead! For example the following 8 textures, which come from Wolfenstein 3D and are copyright by ID Software.

Just replace the part of the code that generates the texture patterns with the following (and make sure those textures are in the correct path). You can download the textures here.

  //generate some textures
  unsigned long tw, th;
  loadImage(texture[0], tw, th, "pics/eagle.png");
  loadImage(texture[1], tw, th, "pics/redbrick.png");
  loadImage(texture[2], tw, th, "pics/purplestone.png");
  loadImage(texture[3], tw, th, "pics/greystone.png");
  loadImage(texture[4], tw, th, "pics/bluestone.png");
  loadImage(texture[5], tw, th, "pics/mossy.png");
  loadImage(texture[6], tw, th, "pics/wood.png");
  loadImage(texture[7], tw, th, "pics/colorstone.png");

Note that this loadBMP function is a new and improved version of the original one, now it also supports loading BMP's into 32-bit integer arrays where the RGB color is a single integer value.

In the original Wolfenstein 3D, the colors of one side was also made darker than the color of the other side of a wall to create the shadow effect, but they used a seperate texture everytime, a dark and a light one. Here however, only one texture is used for each wall and the line of code that divided R, G and B through 2 is what makes the y-sides darker.

© Lode Vandevenne. Reproduced with permission.

Be the first one to comment on this page.

  Graphics eBooks
More Links » »
 Graphics FAQs
More Links » »
 Graphics Interview Questions
More Links » »
 Graphics Articles
More Links » »
 Graphics News
More Links » »
 Graphics Jobs
More Links » »

Share And Enjoy:These icons link to social bookmarking sites where readers can share and discover new web pages.
  • blinkbits
  • BlinkList
  • blogmarks
  • co.mments
  • connotea
  • digg
  • Fark
  • feedmelinks
  • Furl
  • LinkaGoGo
  • Ma.gnolia
  • NewsVine
  • Netvouz
  • RawSugar
  • Reddit
  • scuttle
  • Shadows
  • Simpy
  • Smarking
  • Spurl
  • TailRank
  • Wists
  • YahooMyWeb

Previoushome Next

Keywords: Textured Raycaster, Graphics, Graphics, Graphics tutorial, Graphics tutorial pdf, history of Graphics, learn Graphics

HTML Quizzes
CSS Quiz
CSS 1.0 Quiz
CSS 2.0 Quiz
XML Quizzes
XML Quiz
XSL Quiz
DTD Quiz
Schema Quiz
XForms Quiz
XLink Quiz
XQuery Quiz
XPath Quiz
XPointer Quiz
RDF Quiz
RSS Quiz
WAP Quiz
Web Services Quiz
Browser Scripting Quizzes
JavaScript Quiz
VBScript Quiz
WMLScript Quiz
E4X Quiz
Server Scripting Quizzes
ASP Quiz
SQL Quiz
ADO Quiz
CVS Quiz
Python Quiz
Apple Script Quiz
SQL Server Quiz
PHP Quiz
.NET (dotnet) Quizzes
Microsoft.Net Quiz
ASP.Net Quiz
.Net Mobile Quiz
C# : C Sharp Quiz
VC++ Quiz
Multimedia Quizzes
SVG Quiz
Flash Quiz
Media Quiz
Photoshop Quiz
Gimp Quiz
Matlab Quiz
Gnuplot Programming Quiz
GIF Animation Quiz
Scientific Visualization Quiz
Graphics Quiz
Web Building Quizzes
Web Browsers Quiz
Web Hosting Quiz
W3C Quiz
Web Building Quiz
Web Quality Quiz
Web Semantic Quiz
Web Careers Quiz
Weblogic Quiz
SEO Quiz
Web Site Hosting Quiz
Domain Name Quiz
Java Quizzes
Java Quiz
JSP Quiz
Servlets Quiz
Struts Quiz
EJB Quiz
JMS Quiz
JMX Quiz
Eclipse Quiz
J2ME Quiz
Programming Langauges Quizzes
C Quiz
C++ Quiz
Visual Basic Quiz
Data Structures Using C Quiz
Cobol Quiz
Assembly Language Quiz
Mainframe Quiz
Forth Programming Quiz
Lisp Programming Quiz
Pascal Quiz
Delphi Quiz
Fortran Quiz
OOPs Quiz
Data Warehousing Quiz
CGI Programming Quiz
Emacs Quiz
Gnome Quiz
ILU Quiz
Soft Skills Quizzes
Communication Skills Quiz
Time Management Quiz
Project Management Quiz
Team Work Quiz
Leadership Skills Quiz
Corporate Communication Quiz
Negotiation Skills Quiz
Database Quizzes
Oracle Quiz
MySQL Quiz
Operating System Quizzes
BSD Quiz
Symbian Quiz
Unix Quiz
Internet Quiz
IP-Masquerading Quiz
IPC Quiz
Software Testing Quizzes
Testing Quiz
Firewalls Quiz
SAP Module Quizzes
ERP Quiz
Business Warehousing Quiz
SAP Basis Quiz
Material Management Quiz
Sales & Distribution Quiz
Human Resource Quiz
Netweaver Quiz
Customer Relationship Management Quiz
Production and Planning Quiz
Networking Programming Quizzes
Corba Quiz
Networking Quiz
Microsoft Office Quizzes
Microsoft Word Quiz
Microsoft Outlook Quiz
Microsoft PowerPoint Quiz
Microsoft Publisher Quiz
Microsoft Excel Quiz
Microsoft Front Page Quiz
Microsoft InfoPath Quiz
Microsoft Access Quiz
Accounting Quizzes
Financial Accounting Quiz
Managerial Accounting Quiz
Testimonials | Contact Us | Link to Us | Site Map
Copyright ? 2008. Academic All rights reserved Privacy Policies | About Us
Our Portals : Academic Tutorials | Best eBooksworld | Beyond Stats | City Details | Interview Questions | Discussions World | Excellent Mobiles | Free Bangalore | Give Me The Code | Gog Logo | Indian Free Ads | Jobs Assist | New Interview Questions | One Stop FAQs | One Stop GATE | One Stop GRE | One Stop IAS | One Stop MBA | One Stop SAP | One Stop Testing | Webhosting in India | Dedicated Server in India | Sirf Dosti | Source Codes World | Tasty Food | Tech Archive | Testing Interview Questions | Tests World | The Galz | Top Masala | Vyom | Vyom eBooks | Vyom International | Vyom Links | Vyoms | Vyom World | Important Websites
Copyright ? 2003-2022 Vyom Technosoft Pvt. Ltd., All Rights Reserved.
